  • ENHANCING USER BEHAVIOUR AND FIGHT AGAINST SPEEDING

    Traffic light system intended to fight against speeding and sensitize user to change his behaviour on the road.

    MODES OF OPERATION :

    Red Mode :

    The traffic light shows red by default.

    When a vehicle approch, traffic light shows red color if the vehicle was over the speed limitation, and shows green if the vehicule is detected below the speed limitation. This mode reward the good behaviour of driver.

    Green Mode :

    The traffic light shows green by default.

    When a vehicle approch with speed detected over the speed limitation, the traffic light shows orange the red signal. This mode punish the speeding behaviour.

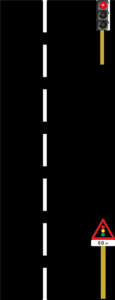

    TYPE 1 : EARLY WARNING SIGNAL + Ø200 MM TRAFFIC LIGHT CONTROLED BY A SPEED RADAR

    Early warning road sign :

    • An A17 road sign is positionned at 50 meters of traffic light
    • The signs is completed by a complementary sign M1 «50m», which indicate the dis- tance between the warning sign and the traffic light
    • This signs are available in INNOV, TRADITION or CRYSTAL ranges
    • Dimensions :
      • A17 Triangle 700 + M1 Complementary 700×200
      • A17 Triangle 1000 + M1 Complementary 900×250

    Speeding Traffic light :

    • Ø200 mm Multiled traffic light
    • System triggered by detection of speeding
    • Detection with a doppler speed radar mounted overhead the traffic light

    Speed Detection :

    • Detection by doppler radar technology
    • Detection distance can be set between 50 and 150 meters
    • Measurable speed range : 5 to 255 km/h
    • Measurement accuracy : ± 1 km/h
    • Continuous measurement

    TYPE 2 : EARLY WARNING SIGNAL + Ø200 MM TRAFFIC LIGHT CONTROLED BY A RADAR SPEED SIGN

    Early warning road sign :

    • An A17 road sign is positionned at 50 meters of traffic light
    • The signs is completed by a complementary sign M1 «50m», which indicate the dis- tance between the warning sign and the traffic light
    • This signs are available in INNOV, TRADITION or CRYSTAL ranges
    • Dimensions :
      • A17 Triangle 700 + M1 Complementary 700×200
      • A17 Triangle 1000 + M1 Complementary 900×250

    Speeding Traffic light :

    • Ø200 mm traffic light
    • Triggering by detection of speeding by the radar speed sign

    Radar speed sign :

    • Two models available in our production range (see technical sheet «Radar Speed Sign»
    • Speed-deterent effect
    • Collection of statistics

    Speed detection :

    • Detection by doppler radar technology
    • Detection distance can be set between 50 and 150 meters
    • Measurable speed range : 5 to 255 km/h
    • Measurement accuracy : ± 1 km/h
    • Continuous measurement

    TYPE 3 : EARLY WARNING SIGNAL + Ø200 MM TRAFFIC LIGHT CONTROLED BY A RADAR SPEED SIGN

    Early warning road sign :

    • An A17 road sign is positionned at 50 meters of traffic light
    • The signs is completed by a complementary sign M1 «50m», which indicate the dis- tance between the warning sign and the traffic light
    • This signs are available in INNOV, TRADITION or CRYSTAL ranges
    • Dimensions :
      • A17 Triangle 700 + M1 Complementary 700×200
      • A17 Triangle 1000 + M1 Complementary 900×250

    Speeding Traffic light :

    • Ø100 mm traffic light
    • Triggering by detection of speeding by the radar speed sign

    Radar speed sign :

    • Two models available in our production range (see technical sheet «Radar Speed Sign»
    • Speed-deterent effect
    • Collection of statistics

    Speed detection :

    • Detection by doppler radar technology
    • Detection distance can be set between 50 and 150 meters
    • Measurable speed range : 5 to 255 km/h
    • Measurement accuracy : ± 1 km/h
    • Continuous measurement
